SuperPole™

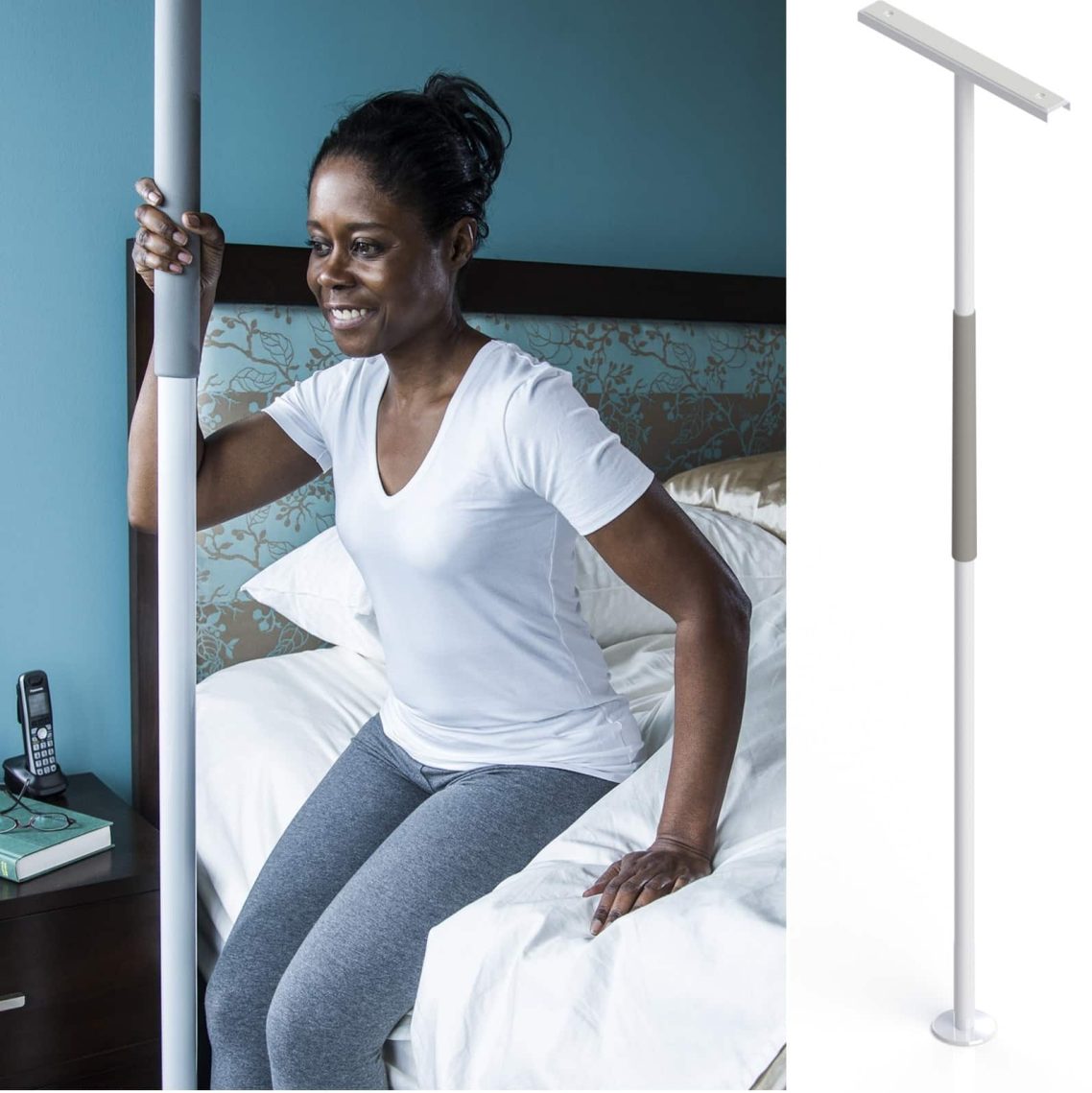

The HealthCraft’s SuperPole is ideal for any room, providing stability and functionality in a clean and modern design. When used with the SuperBar or the SuperTrapeze, the Superpole gives you even more support. It is easily installed between any floor and ceiling by turning a pressurized jackscrew, and the pressure created by the jackscrew is strong enough to support up to 300lbs with the standard pole and 450lbs with the heavy duty pole. Its versatility makes it adaptable to any room in your home; whether you are using it for bathroom safety, or as a grab bar by your bed, the SuperPole can be multi-purposed to meet your support needs.

INSTALLATION

Attach the top plate

1. Attach the top plate to the pole assembly with supplied clevis pin.

SuperPole System Instructions
Download
Bed Entrapment Prevention
Download
Place the base plate

2. Place the base plate on the floor at the intended location. Insert the pole assembly into the base plate.

SuperPole System Instructions
Download
Bed Entrapment Prevention
Download
Make pole vertically level

3. Make pole vertically level and insert a screwdriver thru drive hole in the jackscrew.

SuperPole System Instructions
Download
Bed Entrapment Prevention
Download
Turn jackscrew

4. While holding pole, turn jackscrew (with screwdriver) clockwise until pole is tightened between floor and ceiling.

SuperPole System Instructions
Download
Bed Entrapment Prevention
Download
Ensure ceiling plate spans one or two ceiling joists

5. Ensure ceiling plate spans one or two ceiling joists.

SuperPole System Instructions
Download
Bed Entrapment Prevention
Download
Turn jam nut to lock the jackscrew

6. Turn jam nut to lock the jackscrew. This prevents pole from loosening.

SuperPole System Instructions
Download
Bed Entrapment Prevention
Download
Lower plastic sleeve

7. Lower plastic sleeve to cover jackscrew.

SuperPole System Instructions
Download
Bed Entrapment Prevention
Download

SPECIFICATIONS

Material Alloy steel
Finish / Colour Anti-microbial powder coat white
Weight Capacity Standard (SP-S): 300lbs / 136kgs
Bariatric (SP-HD): 450lbs / 204kgs
Pole Diameter 1.50" / 38.1mm
Height Adjustable 93-99” / 2362-2515mm (Other height options available)
Top Plate Length 20” / 508mm
Base Plate Diameter 5” / 127mm
Grip Material Non-slip, PVC closed cell foam (latex free)
Installation Mechanism Pressure fit between floor and ceiling
Installation Hardware/Fasteners Zinc plated jackscrew (included)
Fasteners Exposed or Concealed Concealed; plastic cover sleeve
Commercial Use Yes
Residential Use Yes
Water Resistant Yes
Rust Resistant No
Country of Origin Canada
Shipping Dimensions Box 1: 3x6x21” / 76.2x152x533mm
Box 2: 2.5Dx96" / 63.5Dx2438mm
Shipping Weight Box 1: 5lbs / 2.3.kg
Box 2: 13lbs / 5.9.kg
Warranty Limited Lifetime Warranty

Frequently Asked Questions

+ What ceiling heights can the SuperPole be installed?

The standard SuperPole accommodates ceilings 93-99” / 236-252cm.
For ceilings below 93”/236cm:
For ceilings between 100-120”/254-305cm, you must add a Uni-Fit to the extend the ceiling height.
Ceilings between 120-140”

+ How do I properly clean the grip?

The grip material is closed cell and won’t absorb anything into the surface. It is unaffected by most solvents and chemicals because the grip material is non-absorbent. While it is non-absorbent, it is porous so we do recommend avoiding cleaners that are grainy (such as Comet) because the granules may get stuck in the porous surface. For cleaning and disinfecting in a hospital or care facility setting, an accelerated hydrogen peroxide can be used to clean the grip.

+ I have a ceiling under 93”/236cm. Can a SuperPole be shortened at the factory?

Yes. We need the exact floor to ceiling height when ordering.

+ Do I have to bolt my SuperPole to the ceiling?

The SuperPole does not have to be attached, but we do suggest if it is not attached to the ceiling the tension is checked once a month. The SuperPole Bariatric must be attached to the ceiling.

+ Will my SuperPole damage my stippled/textured ceiling?

No. Even with repeated removal and installs, no damage done
