PT Rail™

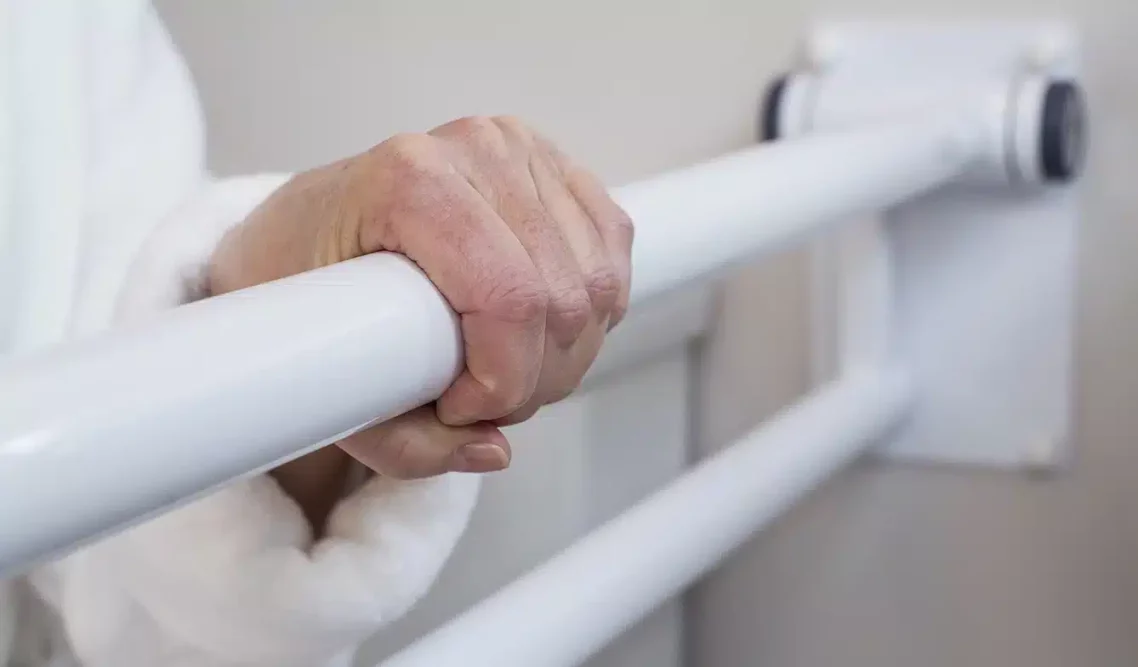

HealthCraft’s PT Rail is the perfect toilet safety rail to provide support and comfort during transitional movements. Unlike other bathroom safety rails, the PT Rail is designed with an innovative offset rail to avoid wrist strain when you’re sitting down or pulling yourself up from a seated position. The PT Rail is also easily stored; simply lift the rail until it is flush against your bathroom walls. The toilet safety rail also features strong compression hinges to keep the rail from falling, giving you support and security even when the rail is halfway up.

Installation

Fasten rail to structural wall

1. Fasten rail to structural wall with appropriate fasteners for wall construction (fasteners not included).

P.T. Rail Instructions
Download
Ensure unobstructed rail travel

2. Ensure unobstructed rail travel in all positions.

P.T. Rail Instructions
Download
Ensure unobstructed rail travel in all positions

3. Ensure unobstructed rail travel in all positions.

P.T. Rail Instructions
Download
Unobstructed rail travel

4. Ensure unobstructed rail travel in all positions.

P.T. Rail Instructions
Download

Specifications

Material Alloy steel or Stainless steel (-SS)
Finish / Colour Anti-microbial powder coat white (-PCW)
Chrome Plated Steel (-CRP)
Brushed Stainless Steel (-SS)
Weight Capacity 400lbs / 181kgs
Rail Diameter 1.50" / 38.1mm (ADA Compliant)
Rail Length 28”/711mm and 32”/813mm
Wall Plate 5.5x9” / 140x229mm
Wall Plate Mounting Holes .375” / 9.525mm
Installation Mechanism Fasteners must be suitable for substrate
Installation Hardware/Fasteners Fasteners must be suitable for substrate
Fasteners Exposed or Concealed Exposed
Commercial Use Yes
Residential Use Yes
Water Resistant Yes
Rust Resistant Yes (Only on Stainless Steel)
Country of Origin Canada
Shipping Dimensions 9x6x33” / 229x152x383mm
Shipping Weight 16lbs / 7.25kgs
Warranty Limited Lifetime Warranty
P.T. Rail Technical Data Sheet
Download

Frequently Asked Questions

+ What are the installation options?

The PT Rail can be installed using either the PT Rail Wall Mast or the Wall Mount Plate.
